How Powder Metallurgy Compaction Shapes Your Part Design

Powder metallurgy compaction is where precision meets performance.

This critical process forms the foundation of every powder metal part, transforming loose powders into dense, uniform shapes that determine the part's strength, durability, and overall functionality. Through controlled pressure and expertly designed tooling, manufacturers can achieve consistent quality and exact dimensions, setting the stage for the final product’s success.

Whether producing simple or complex designs, compaction ensures that each component meets stringent requirements for material integrity, cost-efficiency, and design flexibility. Let’s dive deeper into how compaction drives the quality, consistency, and efficiency that make powder metallurgy such a powerful solution for metal manufacturing.

What Is Powder Metallurgy Compaction?

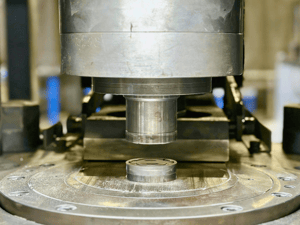

Powder metal compaction occurs when a machine presses fine metal powder into a specific shape under high pressure. This step happens before sintering, where the compacted metal is heated to just below its melting point, bonding the metal particles together.

Metal powder pressing achieves precise part geometry while ensuring consistent material density, a trait that affects final strength and other properties.

The Powder Metallurgy Compaction Process: Step by Step

Metal powder pressing is highly controlled to ensure dimensional precision and repeatability.

Here's how it works:

• Engineered tools that define the part’s final geometry are loaded into the press.
• A fill shoe moves across the die cavity, feeding the appropriate amount of metal powder into the mold.
• The fill shoe retracts, and the top punch seals the cavity. The top and bottom punches move together, applying controlled pressure to interlock the powder.
• The top punch retracts, and the newly formed part is ejected from the tooling either by pushing it out or by stripping the die away.

Compaction only creates a loose shape. The final density and mechanical properties are achieved during sintering.

Net Shape vs. Near-Net Shape Manufacturing

One of the most significant benefits of powder metallurgy is the ability to produce net shape parts — components that come out of the press in their final form, requiring no additional machining.

The part is considered near-net shape when its extremely close to final specifications but may require minor finishing, such as drilling, tapping, or machining.

• Less tool wear, reduced labor, and shorter production time
• Uniform conditions ensure tight dimensional repeatability
• Eliminating secondary operations speeds up production
• Minimal material loss



Understanding Powder Metal Tooling

Tooling is critical to compaction, as it shapes the powder into the final part. Precise tooling design is needed to achieve uniform density distribution, a key factor in maximizing the part's mechanical properties after sintering.

Tooling can be broadly categorized into:

• Perishable tooling directly contacts the powder and forms the part. These tools are considered “perishable” because they experience significant wear and tear. They include:
  • Dies: Form the part’s outer shape
  • Punches: Form the top and bottom surfaces
  • Core rods: Shape internal features

• Adaptation tooling aligns and secures the perishable tools within the press. These tools include:
• Backing plates: Absorb pressing forces to protect the press and die
• Risers: Set punch length
• Structural supports: Maintain correct tooling positioning



Simple vs. Complex: Tooling Considerations

The manufactured part’s complexity directly impacts the complexity and cost of the tooling. Simple parts, like a basic cylinder, may only require a single upper and lower punch, a die, and a core rod. This translates to relatively short design times and lower tooling costs.

However, more complex parts with intricate features, such as gears with splines or parts with multiple levels, require much more sophisticated tooling. This can involve several punches, complex die designs, and significantly longer lead times, with tooling costs potentially reaching tens of thousands of dollars.

Press Types, Speeds, and Their Role in the PM Process

Selecting the right press is critical for quality and production efficiency. Press capacity, measured in tons, determines the size and density you can achieve for a given part. Press types include:

• Standard Action Presses (15-200 tons): Designed for single-level to two-level components.
• Multi-Level Mechanical Presses (30-825 tons): Used for four- to five-level parts.
• CNC Presses (150-175 tons): Allows for components up to six levels.



Cycle Times and Production Efficiencies

The speed at which parts can be pressed depends on several factors, including part size, press type, and production setup.

• Standard mechanical presses: 1,800-2,500 parts per hour.
• High-speed presses: Up to 3,500 parts per hour.
• CNC presses: 500-700 parts per hour, though this may be balanced by the ability to handle more complex shapes or multi-cavity designs.



Tool Life and Maintenance

Tool wear is inevitable, as it directly interacts with the powder under significant pressure. Several project specs can decrease tool life:

• Complex shapes with tight radii and small corner fillets.
• Highly abrasive or high-density powder.
• High throughput, especially on delicate features like chamfers or gear teeth.

Tools may require more frequent redressing or replacement in applications where the part’s dimensions come with tight tolerances.

Even though tooling wear is a fact of life, your manufacturer can extend its lifetime and conserve costs by utilizing:

• Advanced materials like carbide or hardened tool steels resist wear more effectively.
• Coating techniques like physical and chemical vapor deposition reduce friction and protect tooling surfaces.
• Regular maintenance, such as scheduled inspections and redressing, is needed to keep tooling within proper tolerances.



Tech Advancements in Powder Metal Compaction

As powder metal manufacturing continues to evolve, so do the tools and techniques surrounding the compaction step. From smarter press controls to better powder compositions, the industry constantly pushes the boundaries of what’s possible.

Here are a couple of advances that have greatly improved powder metallurgy:

CNC Press Technology

Traditional mechanical presses rely on fixed cam and lever systems, which can limit the design complexity of PM parts. Modern CNC presses use servo or hydraulic actuation with computer controls, allowing for:

• Contour filling to improve density uniformity in complex shapes.
• Powder transfer before compaction to optimize material distribution.
• Adaptive feedback to provide real-time monitoring for higher precision.
• Springback compensation to ensure dimensional accuracy.



Innovative Powder Blends

Advances in metal powders have also contributed to improved compaction processes. Modern powders allow for:

• Higher density compaction, producing stronger, more durable parts.
• Reduced dusting and contamination, leading to better material integrity and fewer defects.



Compaction: The Foundation of Precision in Powder Metallurgy

Powder metallurgy compaction isn’t just a stepping stone to more important work. It’s the foundation that provides your part strength, density, and overall quality. Whether shaping simple cylinders or complex, multilevel components, this stage demands precise control over powder properties, press capacity, and tooling design. Each carefully formed “green compact” sets the stage for successful sintering, ensuring efficiency, precision, and dependable performance.
