Resonance Testing: Finding Defects You Can't See

A powder metal part can look perfect and benefit from additional inspection methods.

Some quality concerns are easy to spot. Others remain beneath the surface until additional testing is performed. That's why manufacturers don't rely on visual inspection alone. They use non-destructive testing (NDT) to uncover problems that the human eye can't detect.

Resonance testing takes a different approach. Instead of relying solely on visual characteristics, it evaluates how the entire part responds to vibration. Every component has a natural frequency, much like a bell after it's struck. Even a small structural change can alter that response, giving manufacturers another way to identify defects before the part moves through production.

In Episode 16 of The PM Blend, the Atlas Pressed Metals team is joined by Brian Butch of Modal Shop and Jeff Monks of EquipCon to discuss resonance testing and how manufacturers use it to inspect powder metal parts.

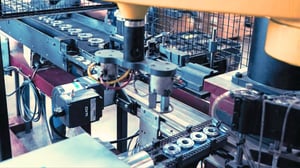

What is Resonance Testing?

Resonance testing is a type of NDT that evaluates a part by measuring how it naturally vibrates. Instead of searching for visible flaws, it "listens" to the part and analyzes its resonant frequency for signs of hidden defects.

Brian Butch compares the process to ringing a bell: "The tone that it rings at is the resonance frequency of that bell." Manufactured parts behave much the same way.

Here's what happens during a resonance test:

1. A part receives a light tap to start the test.

2. The part vibrates at its natural frequency.

3. Specialized equipment records the vibration signature.

4. The signature is compared with known good parts.

5. Any meaningful difference is flagged, indicating the part may contain a defect.

Because resonance testing evaluates the entire structure of a part instead of only its surface, manufacturers can identify internal structural variations that might not be detected through visual inspection alone.

How is Resonance Testing Different from Other NDT Methods?

Every NDT method is designed to answer a different question. Some inspect the surface of a part. Others focus on a specific area by sending a signal into the material. Resonance testing takes a different approach by evaluating how the entire part responds to vibration.

During the discussion, Brian Butch explained that resonance testing is often used as a go/no-go inspection. Rather than identifying the exact location of a defect, it quickly determines whether a part meets quality requirements. That speed makes it well suited for high-volume manufacturing environments.

As Jeff Monks points out during the episode, resonance testing is a volumetric test. Instead of inspecting only the surface, it evaluates the entire structure of the component. That allows manufacturers to identify defects that may not be visible through visual inspection alone.

Hidden Defects: Heard Instead of Seen

Not every structural variation leaves a visible mark on the surface of a part. Some remain hidden until the component is placed under load or put into service. Resonance testing gives manufacturers another tool for identifying structural changes early in the manufacturing process.

Depending on the application, resonance testing can detect structural conditions such as:

• Cracks, including internal cracks that aren't visible from the surface
• Voids and porosity that alter the structure of the part
• Missing or extra material introduced during manufacturing
• Material property changes, including hardness variations and contamination
• Manufacturing defects associated with processes like casting and forging

As Brian Butch explains during the episode, the exact defect depends on the application. Rather than replacing every other inspection method, resonance testing gives manufacturers another tool for identifying structural changes that could affect part performance.

Turning Inspection Data into Better Parts

Every inspection result provides valuable manufacturing insight.

Inspection data can reveal far more than a single quality concern. It can point to changes in the manufacturing process that might otherwise go unnoticed. Resonance testing gives manufacturers the data they need to investigate the cause before the problem affects additional parts.

Andy Rector shared an example from Atlas involving a powder metal gear. The resonance system kept rejecting parts, even though nothing appeared wrong during inspection. The team even examined the gear under a microscope without finding the source of the issue.

Only after sectioning the gear did they find a crack hidden inside the hub. That allowed the team to trace the defect back to its source and make changes that improved consistency moving forward.

The same inspection data can also reveal trends that aren't tied to a single defective part. Manufacturers may notice changes in:

• Part density
• Part weight
• Material properties
• Handling during production

Those patterns can point production teams toward the source of a problem, helping them make adjustments before additional parts are affected.

Why Resonance Testing Fits Modern Manufacturing

Manufacturing environments move quickly. Inspection equipment has to keep pace, and resonance testing has become a practical choice for many powder metal applications because it supports both production and quality goals.

On the production floor, it offers:

• Fast inspection speeds
• Straightforward automation

During quality inspection, it provides:

• A clean process with no consumable materials
• Compatibility with other non-destructive testing methods

Resonance testing has become an important tool in powder metallurgy quality control because it provides fast, repeatable inspection results without damaging the component.

Those advantages have led manufacturers across many industries to incorporate resonance testing as part of their broader quality assurance strategy, including:

• Automotive systems
• Medical devices
• Industrial equipment

As production demands grow, manufacturers need inspection methods that can keep pace without sacrificing consistency. That's one reason resonance testing remains a trusted choice across a wide range of powder metal applications.

Is Resonance Testing the Way Forward?

As manufacturing processes continue to evolve, inspection methods have to evolve with them. Resonance testing gives manufacturers a fast, repeatable way to evaluate part quality while keeping pace with production. That makes it a natural fit for many powder metal applications.

The discussion in Episode 16 of The PM Blend shows why resonance testing continues to gain traction across the industry. It gives manufacturers another way to make informed decisions about part quality before components move farther through production.
